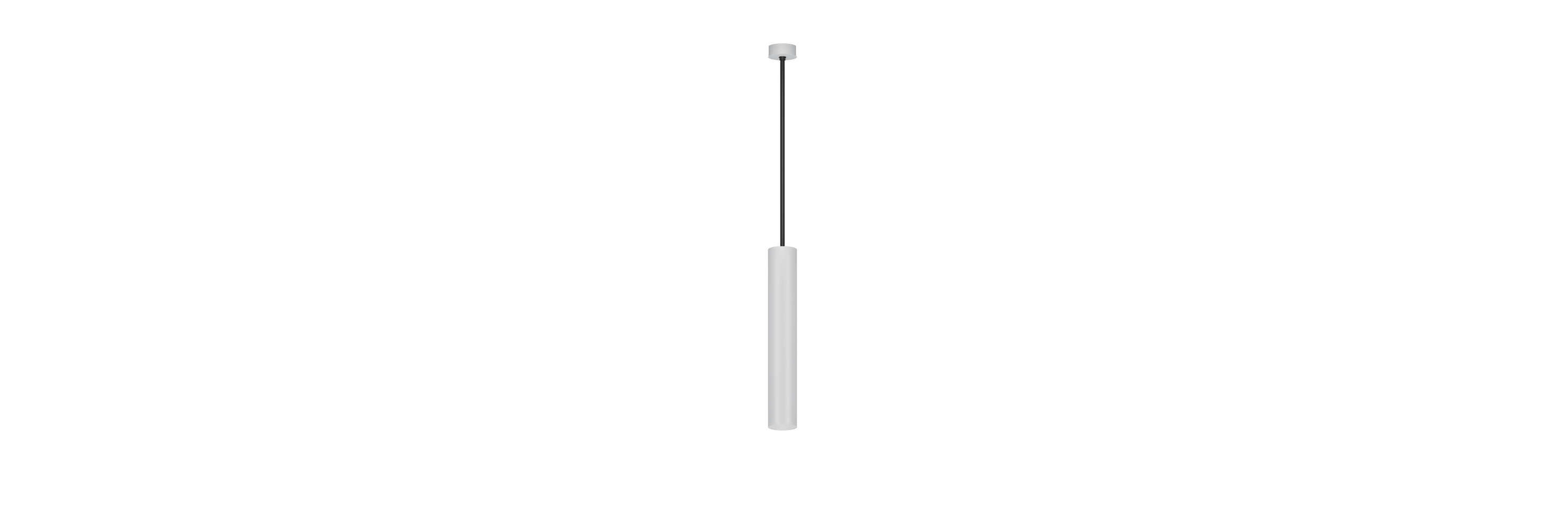

81.04511 FOS Pendant Lighting
| Connected Load | 10W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 18D/22D/32D/45D |
| Installation method | Surface Mounted |
| Light Distribution | 81.04511 FOS Pendant Lighting |
| Luminous Flux Of The Luminaire | 617lm |
| Luminaire Efficacy | 64lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.35Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 22° | ||
| 1 | 3264 | 0.40 |
| 2 | 816 | 0.80 |
| 3 | 363 | 1.20 |
| 4 | 204 | 1.60 |
| 5 | 130 | 2.80 |
Available in AC 220 integrated, 48V magnetic, surface mounted and suspended, a wide range of solutions with light sources and optics for all your lighting needs.
Suitable accessories
Download
Photometric Files

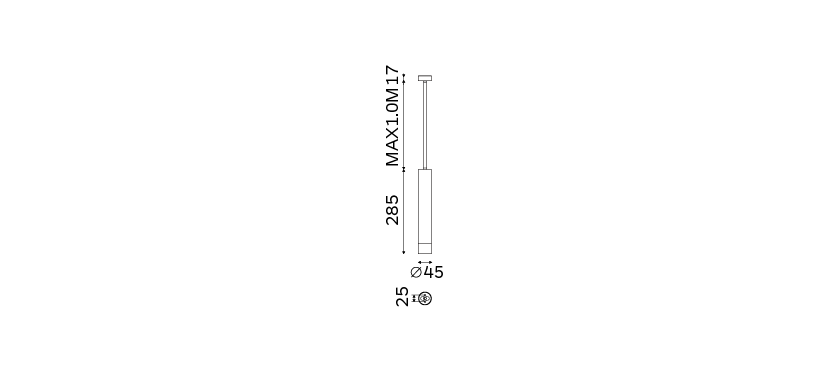

Technical Drawings
