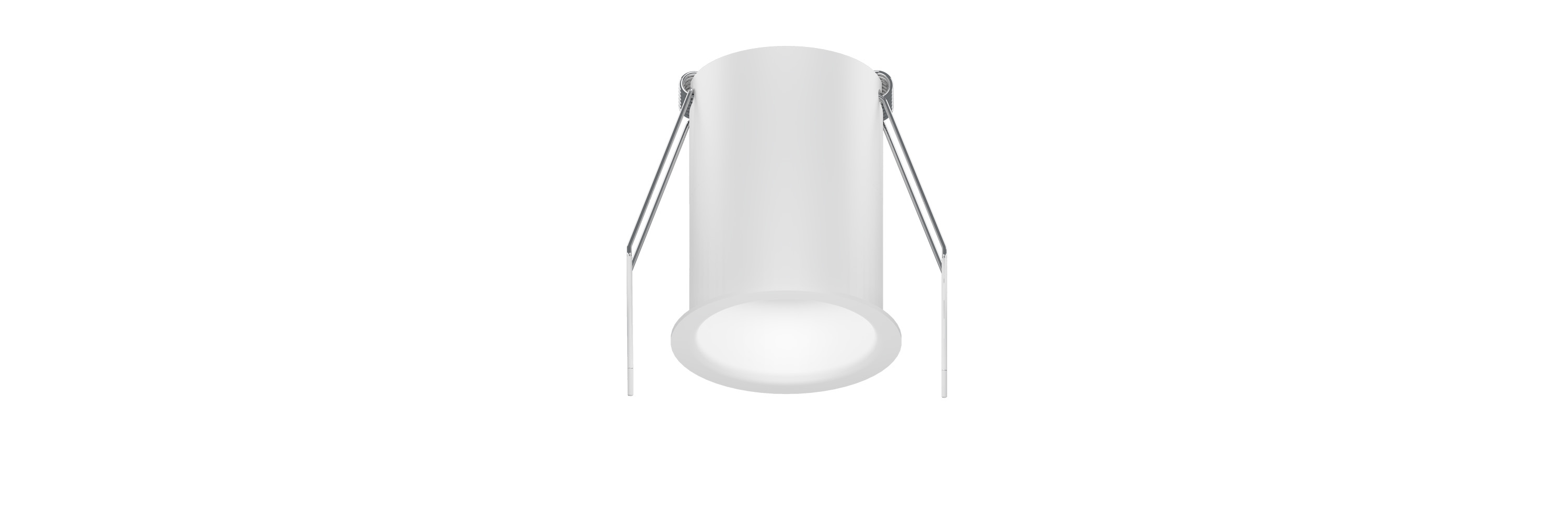

51.05511 NEK Recessed Downlight-Fixed
| Connected Load | 8W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 17D/20D/30D |
| Cut Out | 55mm |
| Light Distribution | 51.05511 NEK Recessed Downlight-Fixed |
| Luminous Flux Of The Luminaire | 531lm |
| Luminaire Efficacy | 73lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.35Kg |
| Technical Region | 220-240V 50/60Hz |

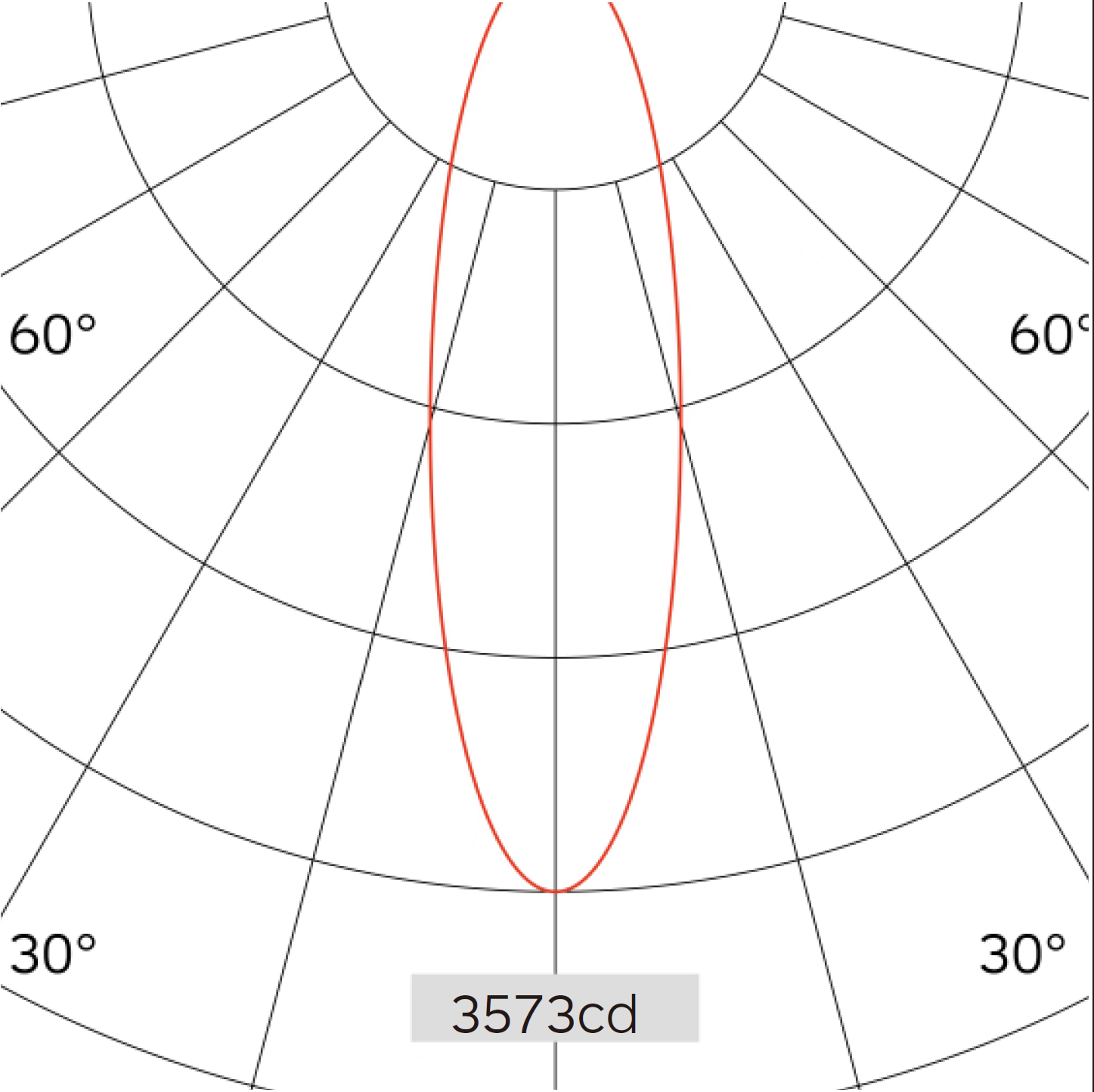

Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 20° | ||
| 1 | 3541 | 0.36 |
| 2 | 885 | 0.73 |
| 3 | 393 | 1.09 |
| 4 | 221 | 1.46 |
| 5 | 142 | 1.82 |
Application areas: High end residential and retail projects, hotels, museums and galleries.
Suitable accessories
Photometric Files

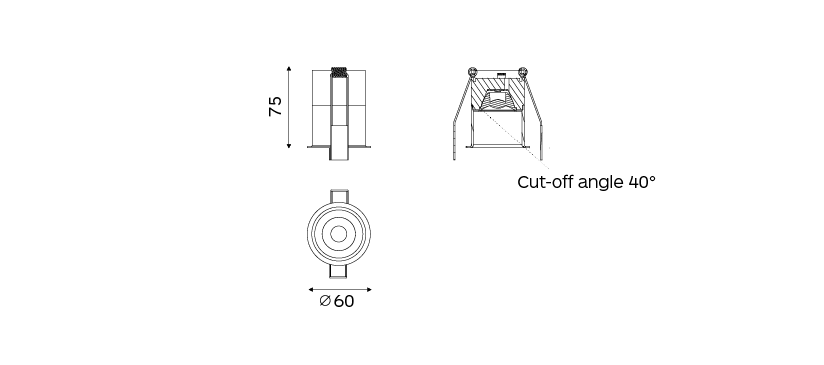

Technical Drawings
