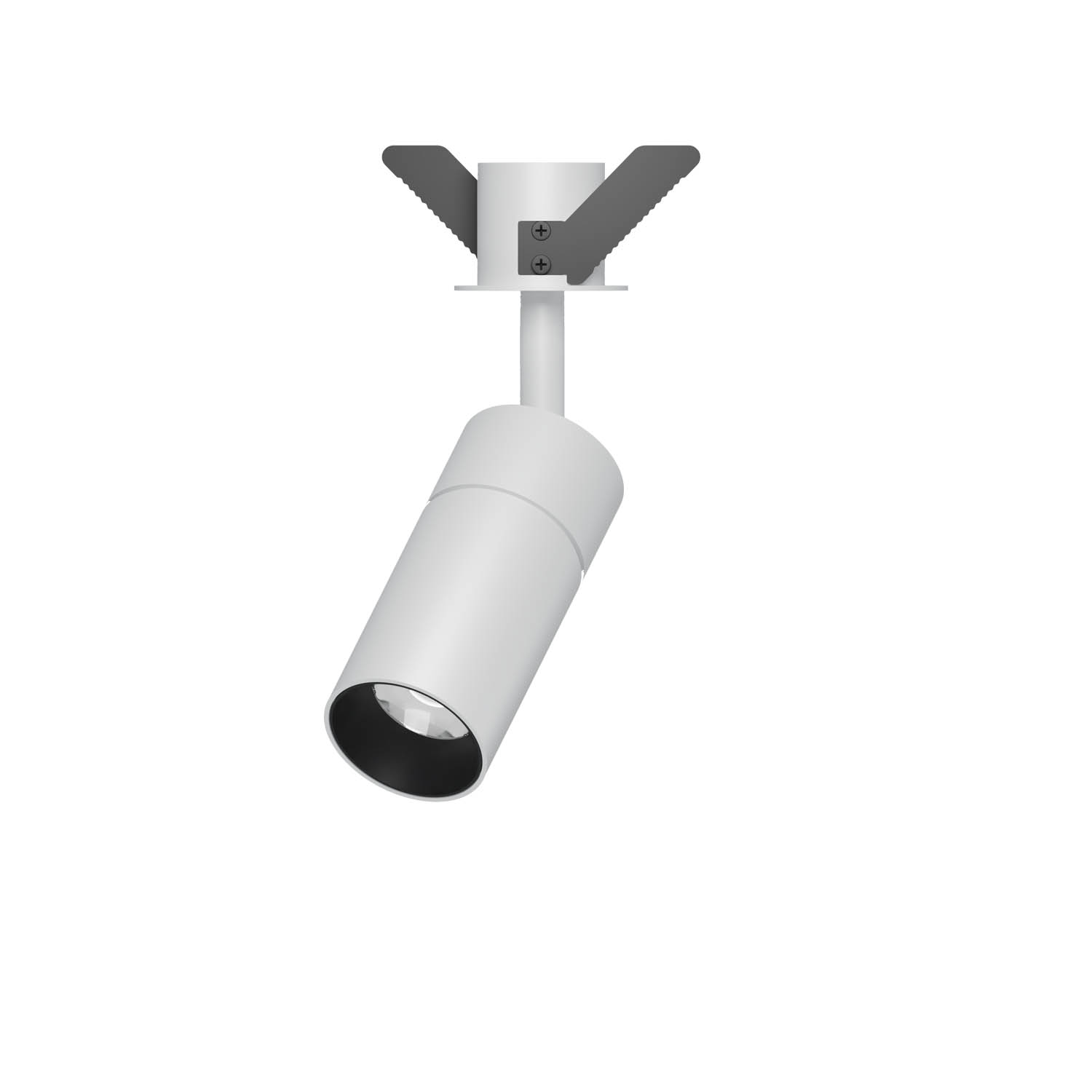

56.04011 EMMA Recessed Downlight
| Connected Load | 9W |
| Colour Temperature | 2700/3000/3500/4000K |
| Colour Rendition Index | CRI 90 |
| Optics | LENS |
| Beam Angle | 16D/24D/36D |
| Cut Out | 40mm |

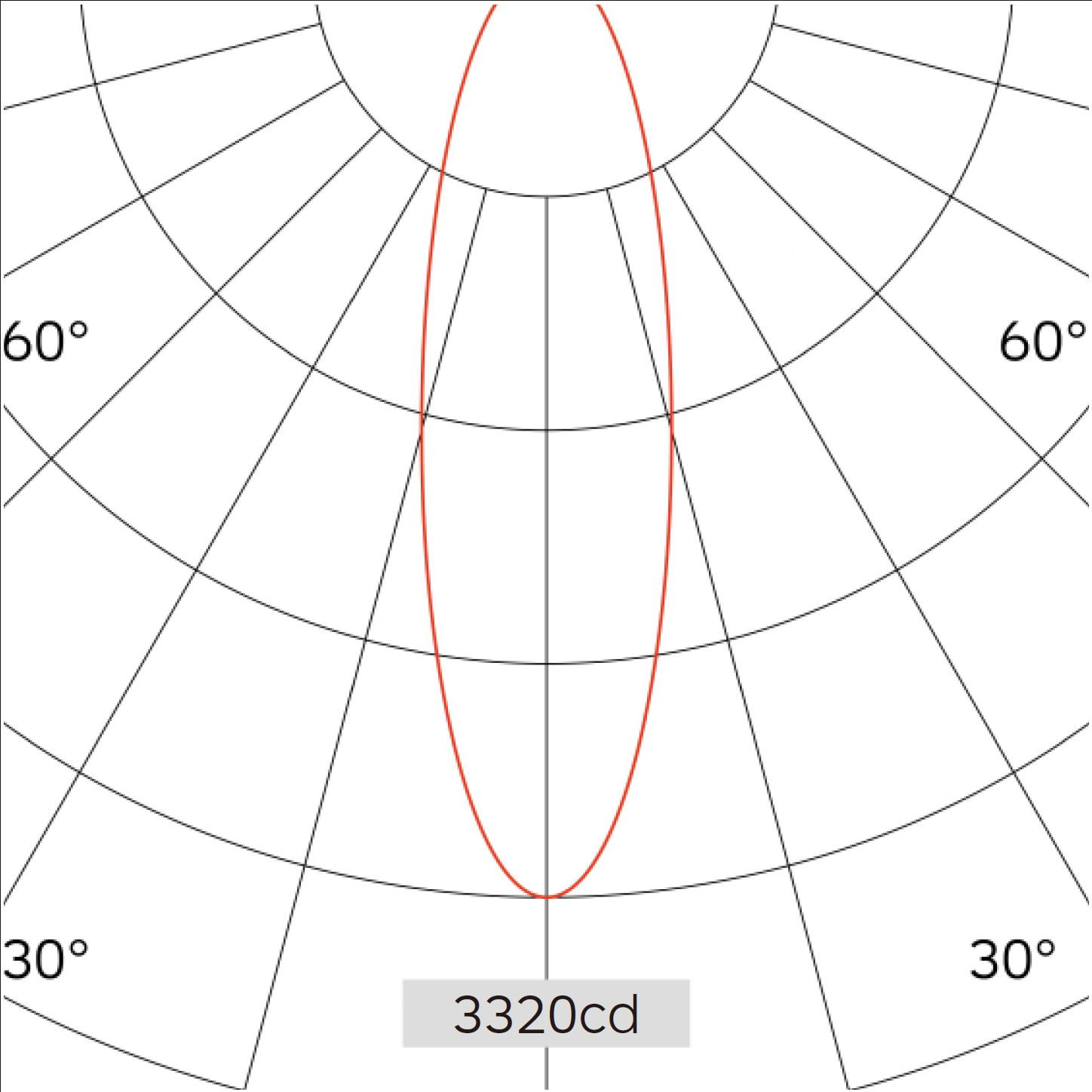

| Light Distribution | 56.04011 EMMA Recessed Downlight |
| Luminous Flux Of The Luminaire | 708lm |
| Luminaire Efficacy | 80lm/W |
| Colour Deviation | SDCM<5 |
| Light Source | LED |
| LED Type | COB |
| Dimming Method | Triac/1-10V/ Dali |
| Cover Material | Aluminum |
| Body Material | Aluminum |
| IP Rating | IP20 |
| Housing Colour | Sandy White/ Sandy Black |
| Weight | 0.27Kg |
| Technical Region | 220-240V 50/60Hz |
Light Beam Table
| h(m) | E(lx) | D(m) |
|---|---|---|
| 24° | ||
| 1 | 3217 | 0.43 |
| 2 | 804 | 0.86 |
| 3 | 357 | 1.29 |
| 4 | 201 | 1.72 |
| 5 | 128 | 2.15 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
Download
Photometric Files

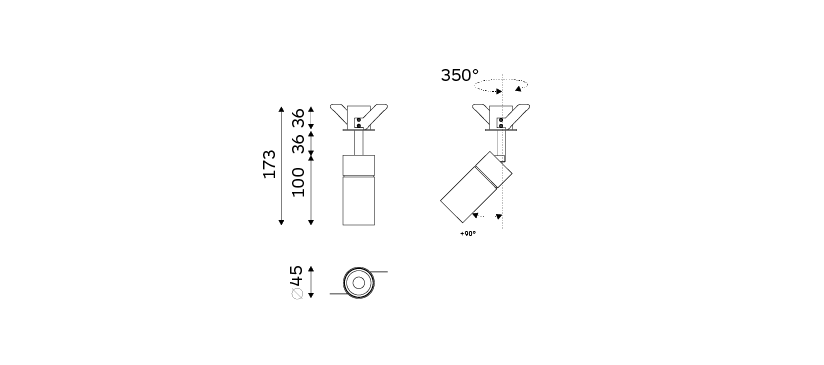

Technical Drawings
