61.02306 SPARK 20 General Lighting
Connected Load | 10W |
Colour Temperature | 2700/3000/3500/4000K |
Colour Rendition Index | CRI 90 |
Optics | PC cover |
Beam Angle | 100D |
Track | Low Voltage Track |

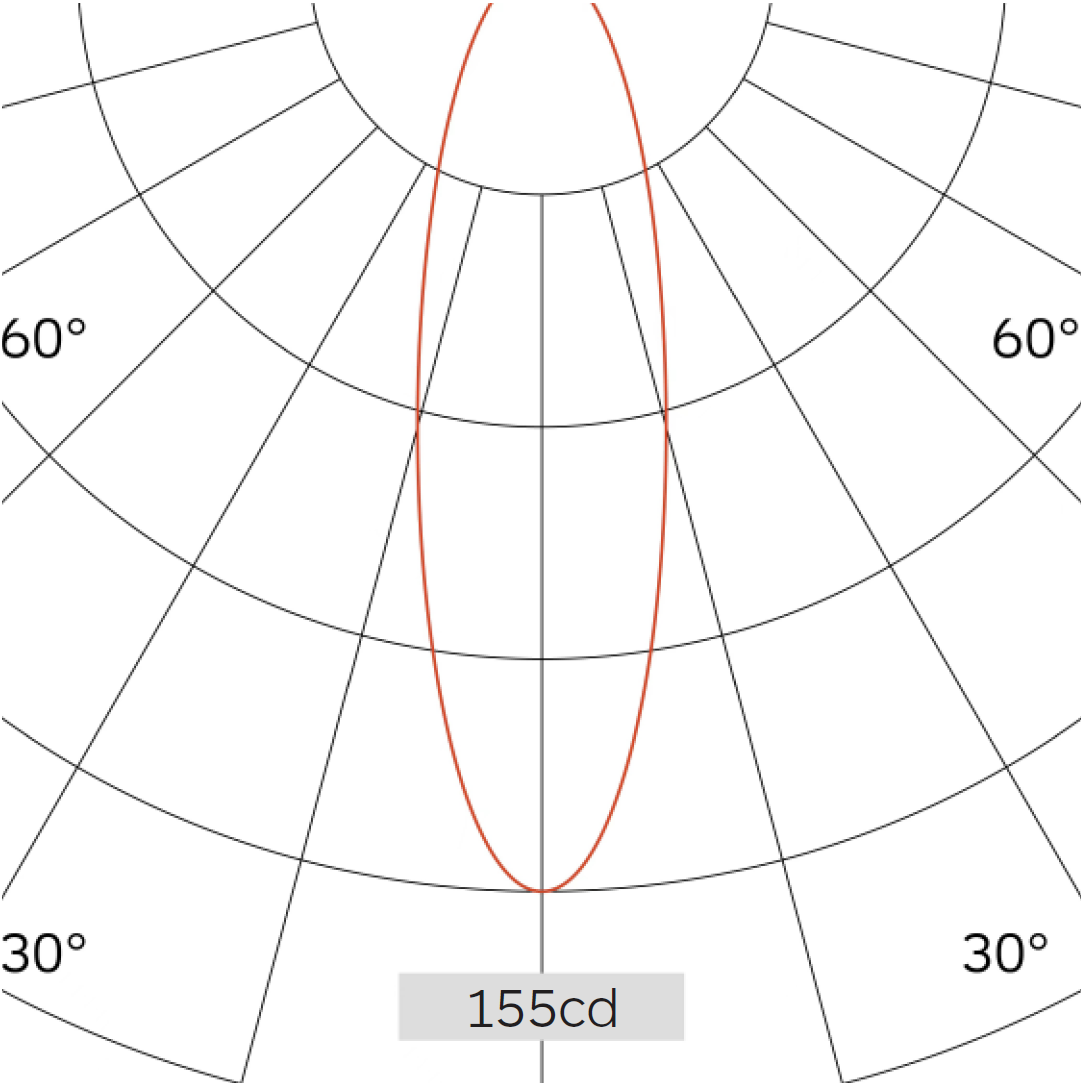

Light Distribution | 61.02306 SPARK 20 General Lighting |
Luminous Flux Of The Luminaire | 397lm |
Luminaire Efficacy | 40lm/W |
Colour Deviation | SDCM<5 |
Light Source | LED |
LED Type | SMD |
Dimming Method | 1-10V/ Dali |
Cover Material | Aluminum |
Body Material | Aluminum |
IP Rating | IP20 |
Housing Colour | Matt White/ Matt Black |
Weight | 0.3Kg |
Technical Region | Input 48V |
Light Beam Table
h(m) | E(lx) | D(m) |
---|---|---|
100° | ||
1 | 154 | 2.41 |
2 | 38 | 4.81 |
3 | 17 | 7.22 |
4 | 9 | 9.62 |
5 | 6 | 12.03 |
Mainly used in high-end commercialspace (clothing shops, furniture shopsand other brand boutiques, car displays.jewelry, star hotels, high-end clubs.museums, chain stores. brand saleshalls. professional windows, countersand other accent lighting places).
Suitable accessories
Photometric Files
Technical Drawings
