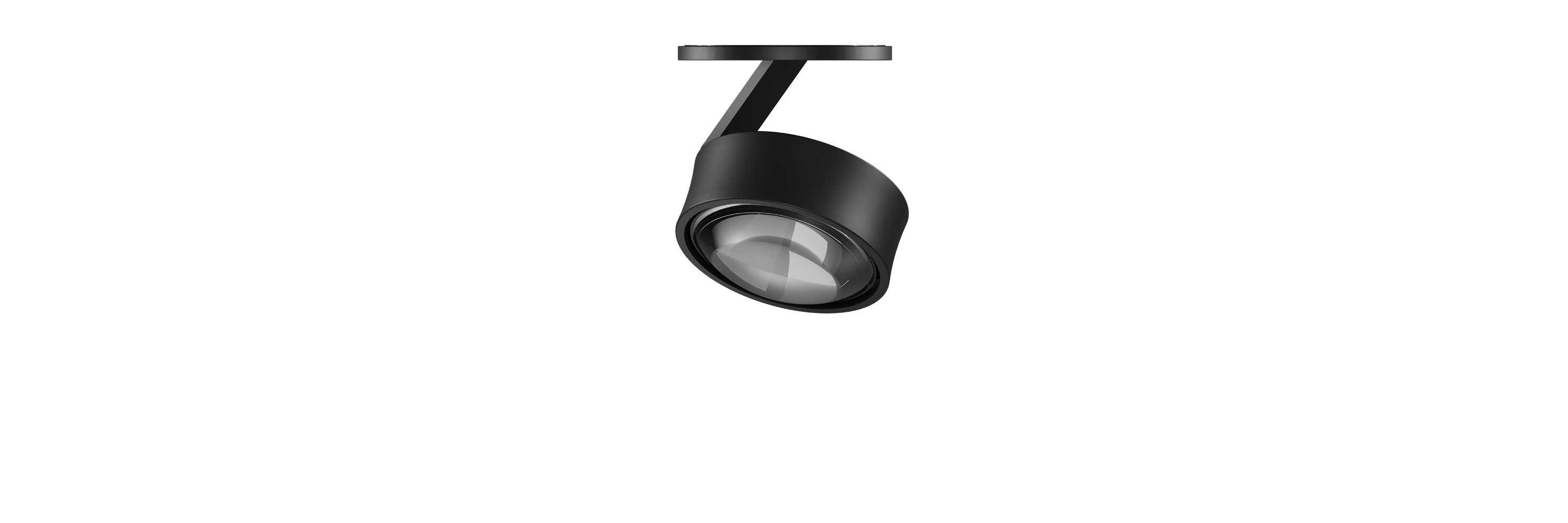

93.11313 LENS Surface Mounted Lighting
Connected Load 20W
Colour Temperature 2700/3000/3500/4000K
Colour Rendition Index CRI 90
Optics LENS
Beam Angle 40D/80D
Installation method Surface Mounted
Light Distribution 93.11313 Surface Mounted Lighting
Luminous Flux Of The Luminaire 1425lm
Luminaire Efficacy 72lm/W
Colour Deviation SDCM<5
Light Source LED
LED Type COB
Dimming Method Triac/1-10V/ Dali
Cover Material Aluminum
Body Material Aluminum
IP Rating IP20
Housing Colour Sandy White/ Sandy Black
Weight 1Kg
Technical Region 220-240V 50/60Hz

Light Beam Table

h(m) E(lx) D(m)
40°
1 2995 0.71
2 748 1.41
3 332 2.12
4 187 2.83
5 119 3.54
The body is carved out of pure aluminum, special appearance with strong heat dissipation performance. The design cover all installation methods, including track, surfaced mounted, wall and pendant, to meet the design requirements of different high end places. Break the traditional optics, used special material glass lens, good anti-glare and average spot.
Suitable accessories

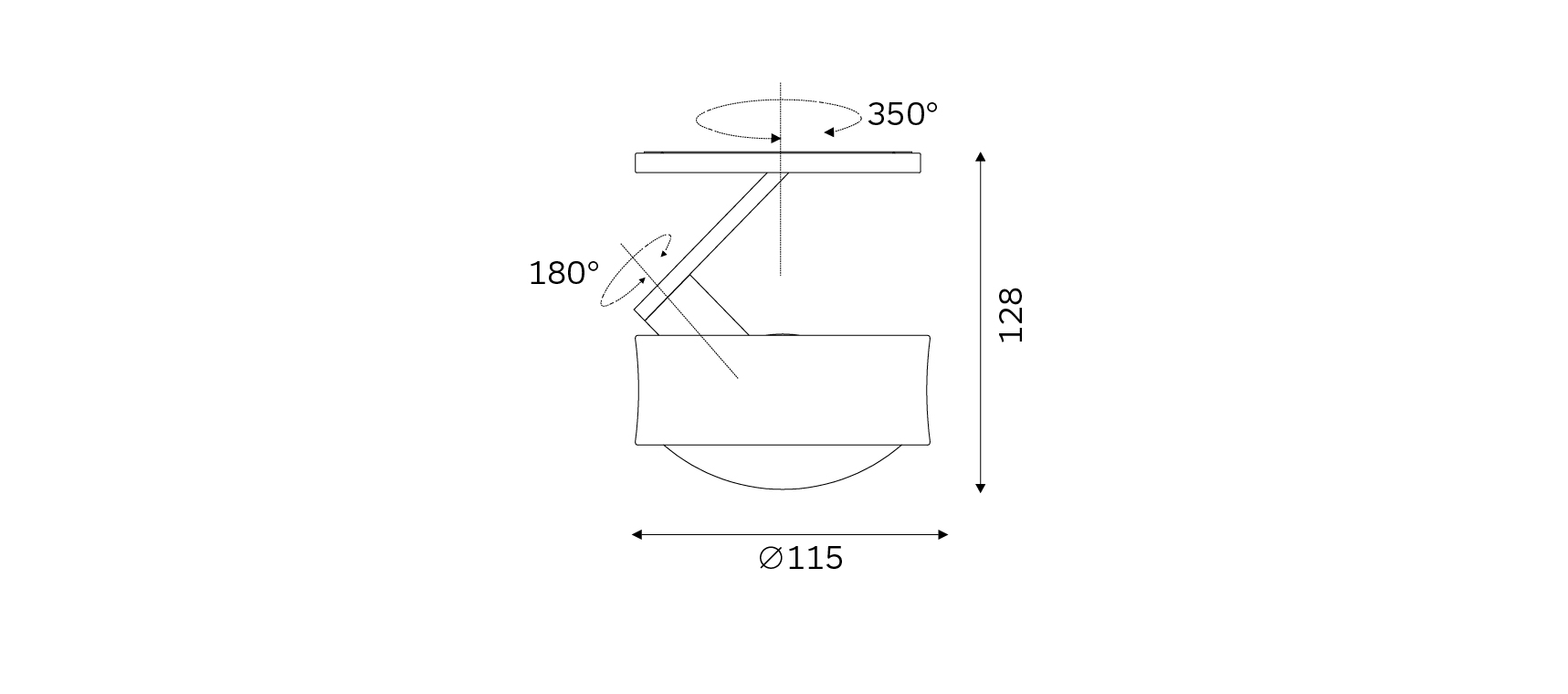

Technical Drawings
